Overview

Overview

Mini Programs offer a comprehensive set of OpenAPIs to achieve various capabilities, such as payment processing, user authorization, and data exchange. These APIs are designed for backend-to-backend communication between your merchant backend and the Super Qi backend using HTTPS requests.

This guide covers the message structure, authentication, and signature generation required for all OpenAPI communications.

Project Setup

Before sending requests to the Super Qi backend, ensure you have:

1. Client ID: Provided during merchant onboarding
2. Private Key: Submitted when creating your merchant account (used to sign all requests)
3. Public Key: Registered with Super Qi for signature verification

Versioning

The current API version is v1. The version is specified in the URL path.

Example:

https://{host}/v1/payments/pay

Different versions of the same API are treated as separate endpoints:

• /v1/payments/pay is different from /v2/payments/pay

Message Structure

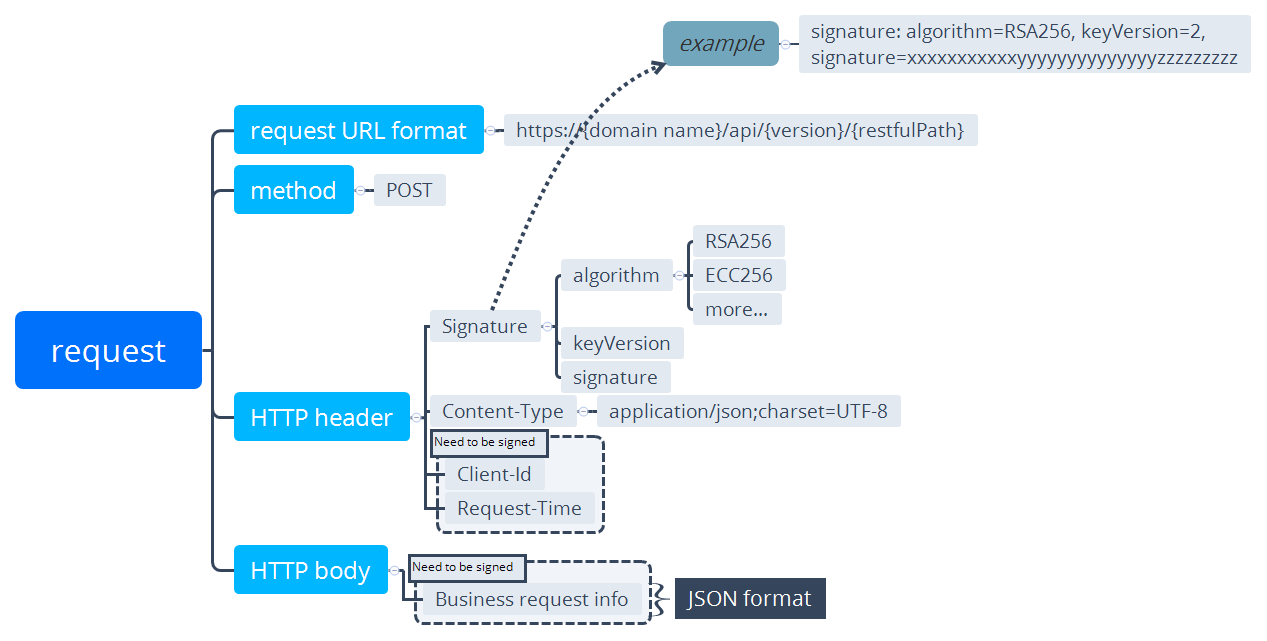

Understanding how OpenAPI requests and responses are structured is essential before making any API calls. The diagram below illustrates the complete request structure:

Request URL

The request URL follows this structure:

https://{host}/{restful_path}

Components:

• host: The base gateway URL assigned to you by the Super Qi team. It is shared privately during onboarding and is not published here — always use the value you received.
• restful_path: The path to the specific API interface, formatted as /{version}/{resource}/{action} — for example, /v1/payments/pay.
• version: The current API version is v1.

Examples:

https://{host}/v1/payments/pay
https://{host}/v1/authorizations/applyToken
https://{host}/v1/payments/refund

Each interface is uniquely identified by its restful_path.

Request Method

All OpenAPI requests use the POST method for HTTP requests.

POST /v1/payments/pay
Host: {host}

Authentication and Security

All requests to Super Qi OpenAPIs require proper authentication through request headers and digital signatures.

Request Headers

Each request must include the following headers:

Complete Header Example:

Content-Type: application/json; charset=UTF-8
Client-Id: 2021001234567890
Request-Time: 2024-01-01T12:00:00-07:00
Signature: algorithm=RSA256, keyVersion=1, signature=base64_encoded_signature

Signature Generation

The signature ensures request authenticity and prevents tampering. Follow these steps to generate a valid signature:

Step 1: Create Sign Content

Combine the HTTP method, path, and request details in this format:

{HTTP_METHOD} {PATH}\n
{CLIENT_ID}.{REQUEST_TIME}.{JSON_CONTENT}

Example:

POST /v1/authorizations/applyToken
2021001234567890.2024-01-01T12:00:00-07:00.{"grantType":"AUTHORIZATION_CODE","authCode":"281011130..."}

Step 2: Hash the Content

Use SHA-256 to hash the sign content created in Step 1.

const hash = SHA256(signContent);

Step 3: Sign with RSA

Sign the hash using your private key with:

• Algorithm: RSA
• Padding: PKCS1v15
• Hash: SHA-256

const signature = RSA_Sign(hash, privateKey, PKCS1v15);

Step 4: Base64 Encode

Encode the signature in base64 format.

const base64Signature = Base64.encode(signature);

Step 5: Add to Header

Include the signature in the request header:

Signature: algorithm=RSA256, keyVersion=1, signature={base64Signature}

Signature Header Components:

Code Examples

Here are complete signature generation examples in different programming languages:

signContent := fmt.Sprintf("%s %s\n%s.%s.%s",
  httpMethod, path, clientID,
  requestTime, content
)

hash := sha256.Sum256([]byte(signContent))
signature, err := rsa.SignPKCS1v15(nil, privateKey, crypto.SHA256, hash[:])

base64Signature := base64.StdEncoding.EncodeToString(signature)

import crypto from "crypto";

const signContent = `${httpMethod} ${path}\n${clientID}.${requestTime}.${content}`;

const hash = crypto.createHash("sha256").update(signContent).digest();
const signature = crypto.sign("RSA-SHA256", hash, privateKey);

const base64Signature = signature.toString("base64");

Request Body

The request body contains detailed request information in JSON format. All request bodies are JSON objects with parameters specific to each API endpoint.

Parameter Structure

Each API has its own required parameters. Here are some common examples:

applyToken Request:

{
  "grantType": "AUTHORIZATION_CODE",
  "authCode": "2810111301lGzcM9CjlF91WH00039190xxxx"
}

pay Request (Cashier Payment):

{
  "productCode": "51051000101000000011",
  "paymentRequestId": "UDQzzvxwvyvUDxGqhMHUlIBpGkydOQC6",
  "paymentAmount": {
    "currency": "IQD",
    "value": "100000"
  },
  "order": {
    "orderDescription": "order_description",
    "buyer": {
      "referenceBuyerId": "216610000000003660xxxx"
    }
  },
  "paymentNotifyUrl": "https://www.merchant.com/paymentNotify"
}

Response Structure

All OpenAPI responses follow a consistent structure with a result object containing status information.

Response Header

Response headers contain metadata about the response:

Response Body

General Structure:

{
  "result": {
    "resultCode": "SUCCESS",
    "resultStatus": "S",
    "resultMessage": "success"
  },
  "additionalField1": "value1",
  "additionalField2": "value2"
}

Result Object Fields:

Result Status Values

Response Example

HTTP/1.1 200 OK
Content-Type: application/json; charset=UTF-8
Response-Time: 2024-11-15T14:30:01.234+03:00

{
  "result": {
    "resultCode": "ACCEPT",
    "resultStatus": "A",
    "resultMessage": "accept"
  },
  "paymentId": "2023120611121280010016600900000xxxx",
  "redirectActionForm": {
    "redirectionUrl": "https://www.wallet.com/cashier?orderId=xxxxxxx"
  }
}
